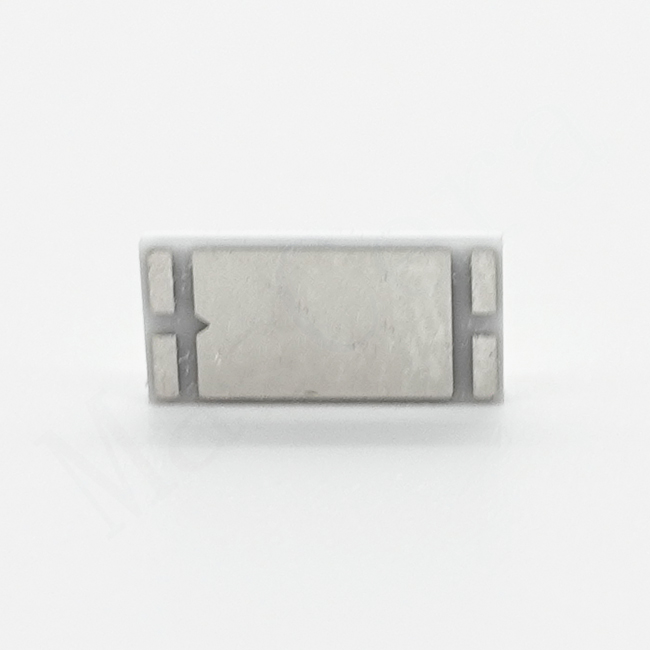

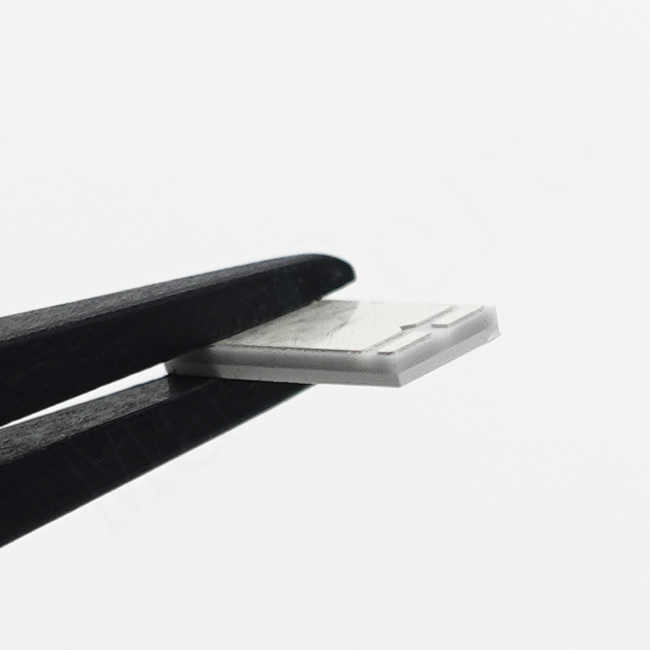

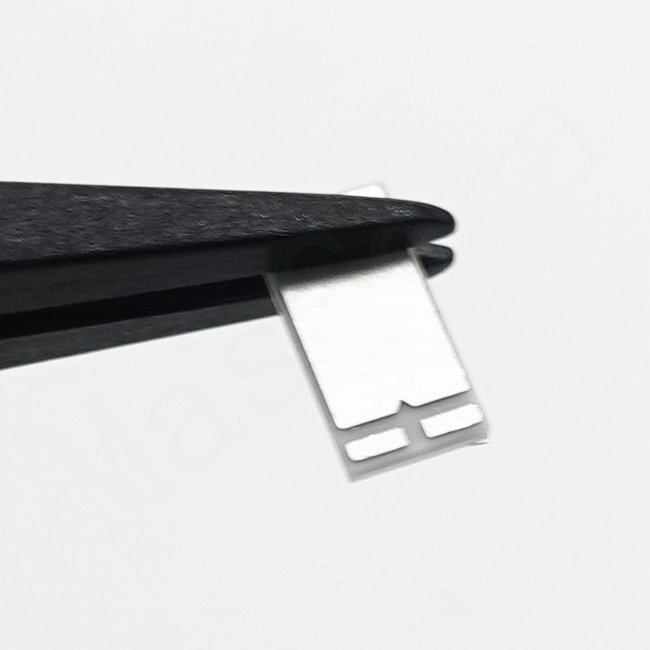

Aluminum Nitride Ceramic Substrate For LED Ceramic Base
- MSJ/ALN-010
- aluminum nitride / aln ceramic
- customized
- 10 pcs per type
- LED ceramic base, LED package substrate, LED lamp bead base, heat dissipation ceramic parts, electronic insulation components
Mascera supplies customized aluminum nitride ceramic substrates for LED ceramic bases and LED package substrates. AlN ceramic offers high thermal conductivity, excellent electrical insulation and reliable heat dissipation for LED and electronic applications.
Any inquiry please email info@mascera-tec.com or call +86 13860446139
Product detail
Aluminum nitride ceramic substrate is a precision ceramic component used for LED ceramic base, LED package substrate, LED lamp bead base and electronic heat dissipation applications. It provides both high thermal conductivity and excellent electrical insulation, making it suitable for LED and electronic devices that require fast heat transfer and stable insulation performance.

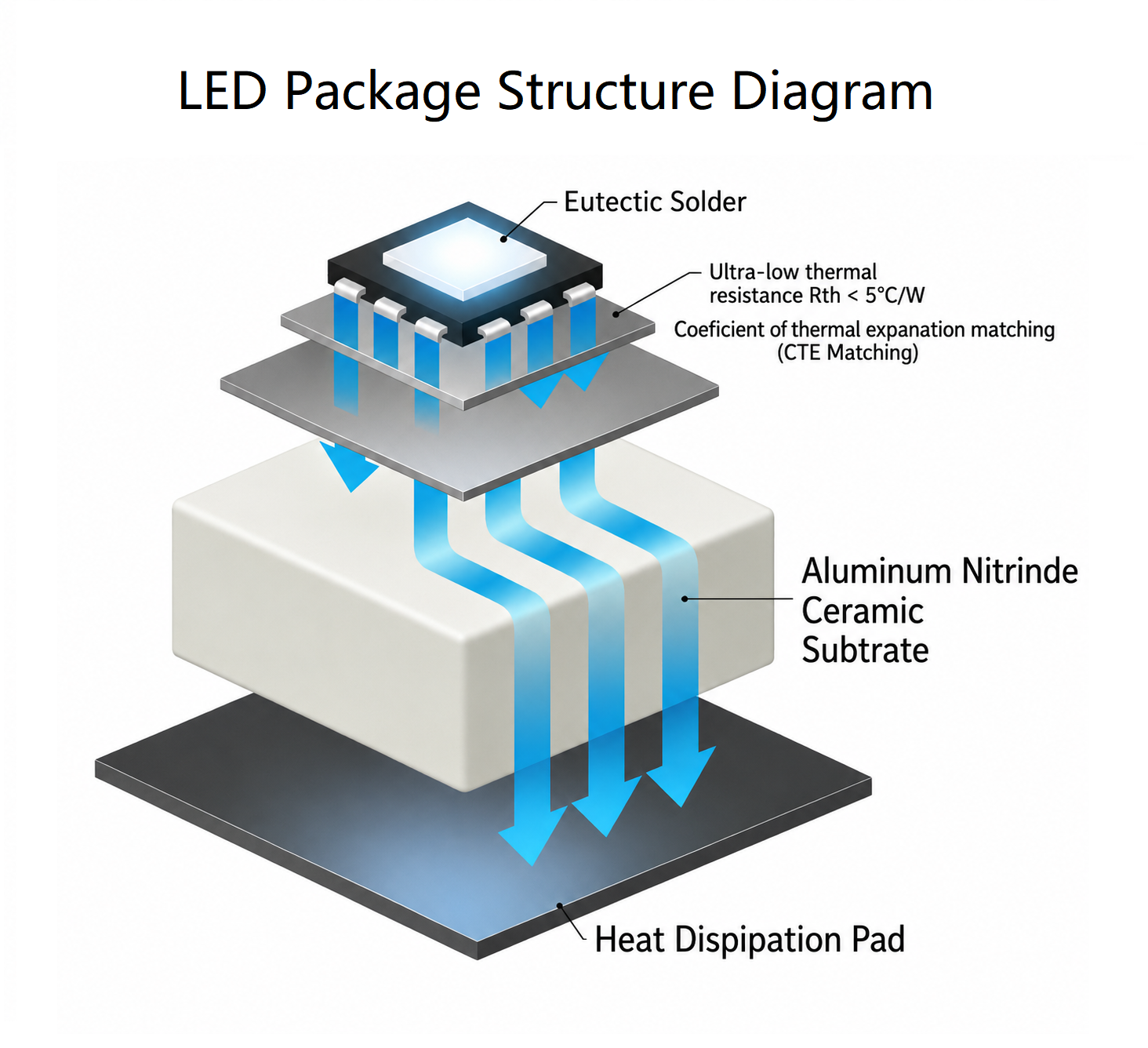

In LED packages and compact electronic modules, heat management is important for brightness stability, service life and long-term reliability. AlN ceramic substrate can help conduct heat from the chip area to the external heat dissipation structure while keeping the circuit electrically insulated.
Compared with alumina ceramic, aluminum nitride ceramic offers much higher thermal conductivity. Mascera's AlN ceramic can reach thermal conductivity of ≥170 W/m·K, while maintaining low dielectric loss, good mechanical strength and stable dimensional performance. It is a reliable material choice for high-power LED lighting, LED package substrate, laser diode base, power module insulation and other heat-sensitive applications.

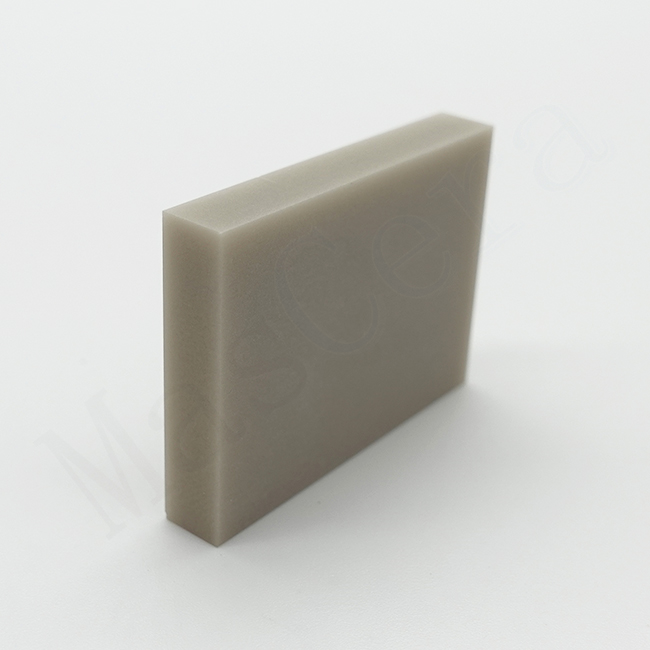

Mascera supplies customized aluminum nitride ceramic substrates according to customers's drawings or samples. Available forms include small ceramic substrates, ceramic spacers, square ceramic plates, rectangular ceramic bases, thin ceramic wafers and other special-shaped AlN ceramic components. The size, thickness, tolerance, flatness and surface finish can be customized according to different application requirements.
Main properties
High thermal conductivity for efficient LED heat dissipation
Excellent electrical insulation
Suitable for LED ceramic base and LED package substrate
Better thermal performance than alumina ceramic
Low dielectric constant and low dielectric loss
Good thermal expansion compatibility with semiconductor materials
Good heat resistance, corrosion resistance and aging resistance
High mechanical strength and stable dimensional performance
Customized size, thickness and shape available
Available for prototype testing and batch production
Applications
LED ceramic base
LED lamp bead base
LED package substrate
High-power LED lighting components
Industrial LED lighting
Outdoor LED lighting
Automotive LED lighting
UV LED light source modules
Laser diode ceramic bases
Optical device ceramic components
Heat dissipation ceramic parts
Electronic insulation spacers
Power electronic modules
Material Data Sheet
| ITEM | UNIT | TECHNICAL PARAMETERS |
|---|---|---|
| Purity | % | 95 |
| Color | ‐ | Light Grey |
| Density | g/cm3 | ≥3.30 |
| Hardness (HV0.5) | - | 1130 |
| Young’s modulus | Gpa | 310-320 |
| Fracture Toughness | Mpa.m1/2 | 3.5 |
| Flexural Strength @25℃ | Mpa | 330 |
| Compressive Strength @25℃ | Mpa | 2100 |
| Thermal conductivity @25℃ | W/M.K | ≥170 |
Coefficient of Thermal Expansion(20~300℃) | 10-6/℃ | 4.7 |
| Thermal shock resistance | △℃ | 400 |
Max. Working Temperature @Air conditio | ℃ | 900 |
Max. Working Temperature @Inert gas protection condition | ℃ | 1800 |
| Melting Point | ℃ | 2500 |
| Dielectric Strength | KV/mm | 17 |
| Volume Resistivity | Ω.cm | ＞1014 |
Dielectric Constant(1MHz, 25℃) | - | 9 |
| Dielectric Loss (1MHz, 25℃) | - | 0.001 |

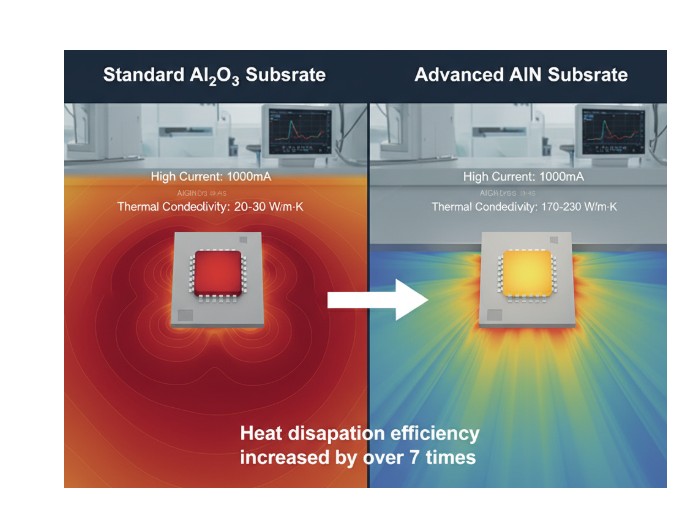

Alumina Ceramic vs Aluminum Nitride Ceramic For LED Bases
Alumina ceramic and aluminum nitride ceramic are both insulating ceramic materials used in electronic and LED applications. Alumina ceramic has good electrical insulation and lower material cost, making it suitable for general insulation parts and low to medium power applications.
Aluminum nitride ceramic is recommended when better heat dissipation is required. Its much higher thermal conductivity helps transfer heat away from the LED chip area more efficiently, making it suitable for LED package substrates, high-power LED ceramic bases, laser diode bases and other heat-sensitive electronic components.
Processing Ability
Mascera can manufacture customized aluminum nitride ceramic substrates and AlN ceramic spacers according to customers’ drawings or samples. Available processing includes ceramic cutting, grinding, drilling, laser cutting, lapping and polishing.For quotation, customers are welcome to provide drawings, dimensions, tolerance requirements, quantity and application details.
